ClusterSequenceStructure

#include <fjcore.hh>

Inheritance diagram for ClusterSequenceStructure:

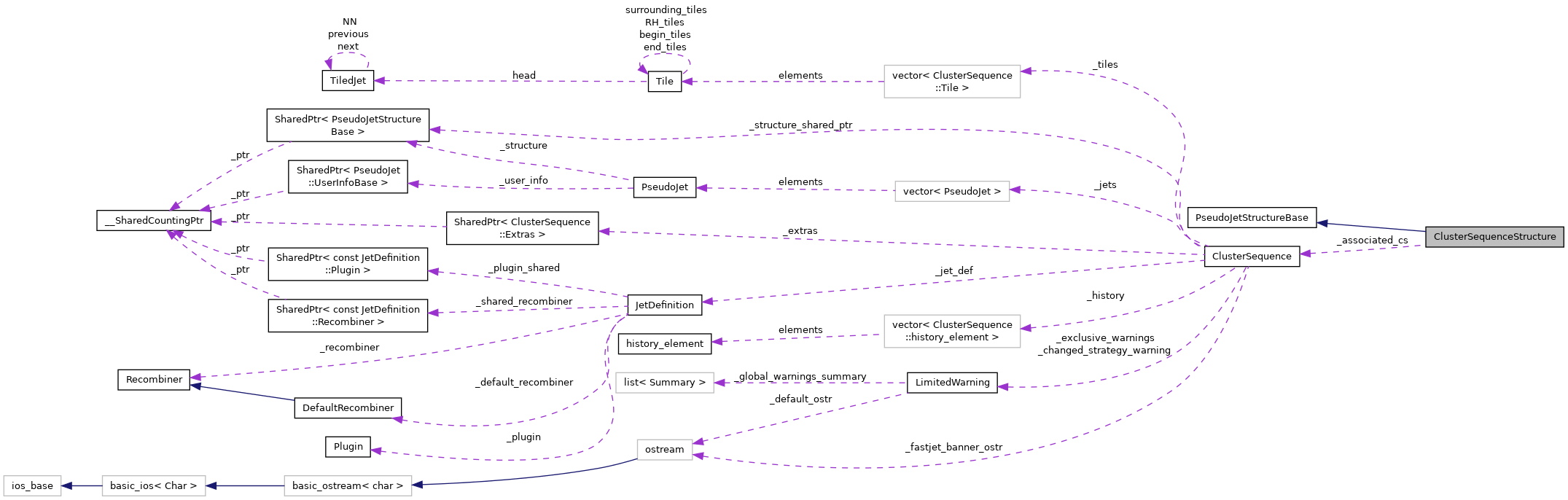

Collaboration diagram for ClusterSequenceStructure:

Public Member Functions
	ClusterSequenceStructure ()
	ClusterSequenceStructure (const ClusterSequence *cs)
virtual	~ClusterSequenceStructure ()
virtual std::string	description () const FJCORE_OVERRIDE
virtual bool	has_associated_cluster_sequence () const FJCORE_OVERRIDE
virtual const ClusterSequence *	associated_cluster_sequence () const FJCORE_OVERRIDE
virtual bool	has_valid_cluster_sequence () const FJCORE_OVERRIDE
virtual const ClusterSequence *	validated_cs () const FJCORE_OVERRIDE
virtual void	set_associated_cs (const ClusterSequence *new_cs)
virtual bool	has_partner (const PseudoJet &reference, PseudoJet &partner) const FJCORE_OVERRIDE
virtual bool	has_child (const PseudoJet &reference, PseudoJet &child) const FJCORE_OVERRIDE
virtual bool	has_parents (const PseudoJet &reference, PseudoJet &parent1, PseudoJet &parent2) const FJCORE_OVERRIDE
virtual bool	object_in_jet (const PseudoJet &reference, const PseudoJet &jet) const FJCORE_OVERRIDE
virtual bool	has_constituents () const FJCORE_OVERRIDE
virtual std::vector< PseudoJet >	constituents (const PseudoJet &reference) const FJCORE_OVERRIDE
virtual bool	has_exclusive_subjets () const FJCORE_OVERRIDE
virtual std::vector< PseudoJet >	exclusive_subjets (const PseudoJet &reference, const double &dcut) const FJCORE_OVERRIDE
virtual int	n_exclusive_subjets (const PseudoJet &reference, const double &dcut) const FJCORE_OVERRIDE
virtual std::vector< PseudoJet >	exclusive_subjets_up_to (const PseudoJet &reference, int nsub) const FJCORE_OVERRIDE
virtual double	exclusive_subdmerge (const PseudoJet &reference, int nsub) const FJCORE_OVERRIDE
virtual double	exclusive_subdmerge_max (const PseudoJet &reference, int nsub) const FJCORE_OVERRIDE
virtual bool	has_pieces (const PseudoJet &reference) const FJCORE_OVERRIDE
virtual std::vector< PseudoJet >	pieces (const PseudoJet &reference) const FJCORE_OVERRIDE
Public Member Functions inherited from PseudoJetStructureBase
	PseudoJetStructureBase ()
virtual	~PseudoJetStructureBase ()

Protected Attributes
const ClusterSequence *	_associated_cs

Constructor & Destructor Documentation

ClusterSequenceStructure() [1/2]

ClusterSequenceStructure ( )

inline

: _associated_cs(NULL){}

ClusterSequenceStructure() [2/2]

ClusterSequenceStructure ( const ClusterSequence *  cs )

inline

                                                     {
    set_associated_cs(cs);
  };

~ClusterSequenceStructure()

~ClusterSequenceStructure ( )

virtual

                                                   {
  if (_associated_cs != NULL
      && _associated_cs->will_delete_self_when_unused()) {
    _associated_cs->signal_imminent_self_deletion();
    delete _associated_cs;
  }
}

Member Function Documentation

associated_cluster_sequence()

const ClusterSequence * associated_cluster_sequence ( ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                  {
  return _associated_cs;
}

constituents()

vector< PseudoJet > constituents ( const PseudoJet &  reference ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                        {
  return validated_cs()->constituents(reference);
}

description()

virtual std::string description ( ) const

inlinevirtual

Reimplemented from PseudoJetStructureBase.

                                                       {
    return "PseudoJet with an associated ClusterSequence";
  }

exclusive_subdmerge()

double exclusive_subdmerge ( const PseudoJet &  reference, int  nsub  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                               {
  return validated_cs()->exclusive_subdmerge(reference, nsub);
}

exclusive_subdmerge_max()

double exclusive_subdmerge_max ( const PseudoJet &  reference, int  nsub  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                   {
  return validated_cs()->exclusive_subdmerge_max(reference, nsub);
}

exclusive_subjets()

std::vector< PseudoJet > exclusive_subjets ( const PseudoJet &  reference, const double &  dcut  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                                       {
  return validated_cs()->exclusive_subjets(reference, dcut);
}

exclusive_subjets_up_to()

std::vector< PseudoJet > exclusive_subjets_up_to ( const PseudoJet &  reference, int  nsub  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                                  {
  return validated_cs()->exclusive_subjets_up_to(reference, nsub);
}

has_associated_cluster_sequence()

virtual bool has_associated_cluster_sequence ( ) const

inlinevirtual

Reimplemented from PseudoJetStructureBase.

{ return true;}

has_child()

bool has_child ( const PseudoJet &  reference, PseudoJet &  child  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                          {
  return validated_cs()->has_child(reference, child);
}

has_constituents()

bool has_constituents ( ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                     {
  if (!has_associated_cluster_sequence())
    throw Error("you requested information about the internal structure of a jet, but it is not associated with a ClusterSequence or its associated ClusterSequence has gone out of scope.");
  return true;
}

has_exclusive_subjets()

bool has_exclusive_subjets ( ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                          {
  if (!has_associated_cluster_sequence())
    throw Error("you requested information about the internal structure of a jet, but it is not associated with a ClusterSequence or its associated ClusterSequence has gone out of scope.");
  return true;
}

has_parents()

bool has_parents ( const PseudoJet &  reference, PseudoJet &  parent1, PseudoJet &  parent2  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                                  {
  return validated_cs()->has_parents(reference, parent1, parent2);
}

has_partner()

bool has_partner ( const PseudoJet &  reference, PseudoJet &  partner  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                              {
  return validated_cs()->has_partner(reference, partner);
}

has_pieces()

bool has_pieces ( const PseudoJet &  reference ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                         {
  PseudoJet dummy1, dummy2;
  return has_parents(reference, dummy1, dummy2);
}

has_valid_cluster_sequence()

bool has_valid_cluster_sequence ( ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                               {
  return (_associated_cs != NULL);
}

n_exclusive_subjets()

int n_exclusive_subjets ( const PseudoJet &  reference, const double &  dcut  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                       {
  return validated_cs()->n_exclusive_subjets(reference, dcut);
}

object_in_jet()

bool object_in_jet ( const PseudoJet &  reference, const PseudoJet &  jet  ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                                  {
  if ((!has_associated_cluster_sequence()) || (!jet.has_associated_cluster_sequence()))
    throw Error("you requested information about the internal structure of a jet, but it is not associated with a ClusterSequence or its associated ClusterSequence has gone out of scope.");
  if (reference.associated_cluster_sequence() != jet.associated_cluster_sequence()) return false;
  return validated_cs()->object_in_jet(reference, jet);
}

pieces()

vector< PseudoJet > pieces ( const PseudoJet &  reference ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                                  {
  PseudoJet j1, j2;
  vector<PseudoJet> res;
  if (has_parents(reference, j1, j2)){
    res.push_back(j1);
    res.push_back(j2);
  }
  return res;
}

set_associated_cs()

virtual void set_associated_cs ( const ClusterSequence *  new_cs )

inlinevirtual

                                                                {
    _associated_cs = new_cs;
  }

validated_cs()

const ClusterSequence * validated_cs ( ) const

virtual

Reimplemented from PseudoJetStructureBase.

                                                                     {
  if (!_associated_cs)
    throw Error("you requested information about the internal structure of a jet, but its associated ClusterSequence has gone out of scope.");
  return _associated_cs;
}

Member Data Documentation

_associated_cs

const ClusterSequence* _associated_cs

protected

---

The documentation for this class was generated from the following files:

• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Core/JetObservables/interface/fjcore.hh
• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Core/JetObservables/src/fjcore.cc
