TPSBranchFlattener

Description

Flattens the event tree into general objects suitable for machine learning input. Target branches contain basic jet information and weights, as well as all TPS observables.

+ Inheritance diagram for TPSBranchFlattener:

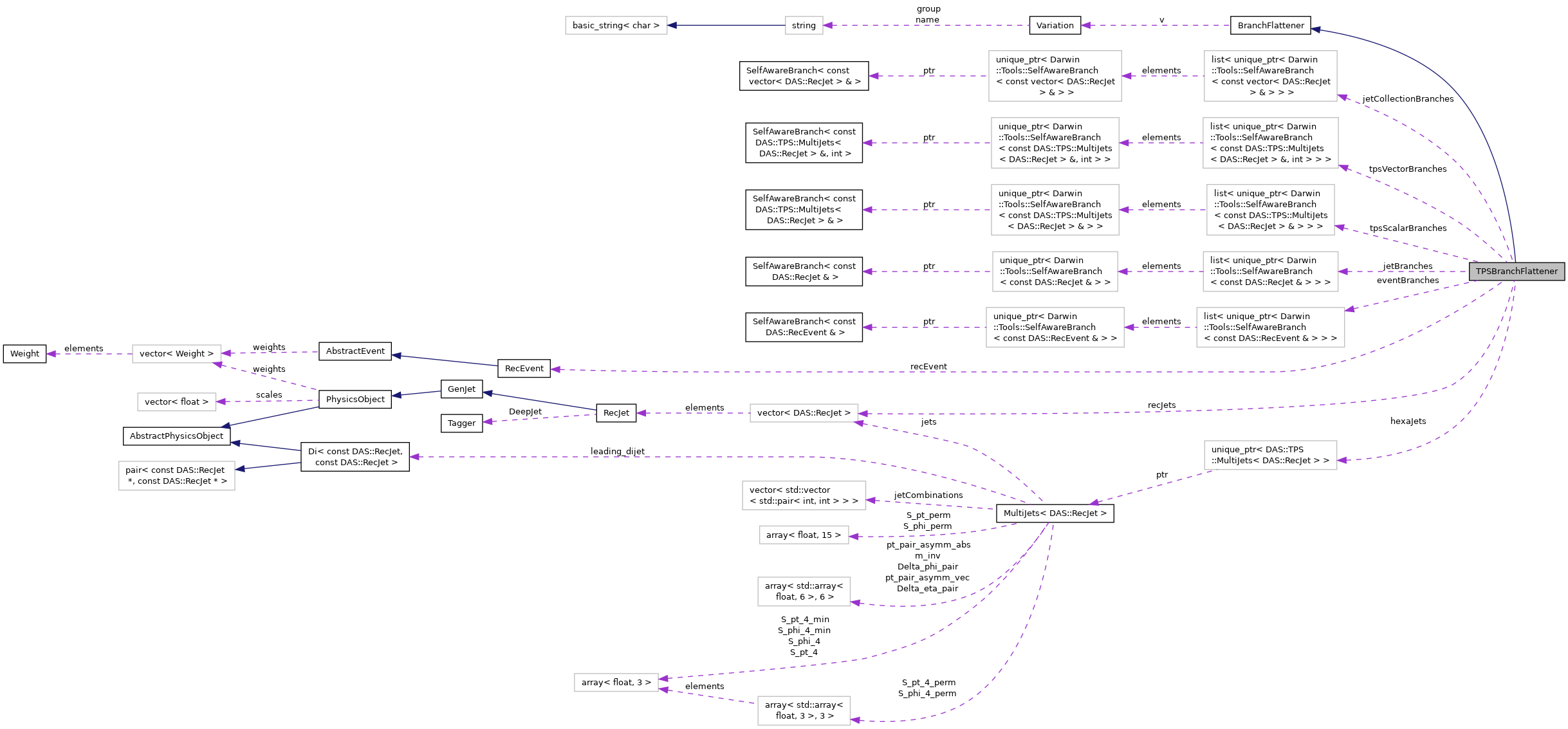

+ Collaboration diagram for TPSBranchFlattener:

Public Member Functions

 TPSBranchFlattener (DT::Flow &flow, const Variation &v)

void Fill () override

void Clear () override

- Public Member Functions inherited from BranchFlattener
virtual ~BranchFlattener ()=default

virtual ~BranchFlattener ()=default


Protected Member Functions

template<typename Ret , typename Input >
void AddEventBranch (DT::Flow &flow, const string &name, const function< Ret(const Input &)> &f)

template<typename Ret >
void AddJetBranch (DT::Flow &flow, const string &name, const function< Ret(const RecJet &)> &f)

template<typename Ret >
void AddTPSScalarBranch (DT::Flow &flow, const string &name, const function< Ret(const MultiJets< RecJet > &)> &f)

template<typename Ret >
void AddTPSVectorBranch (DT::Flow &flow, const string &name, const function< Ret(const MultiJets< RecJet > &, int)> &f)

- Protected Member Functions inherited from BranchFlattener
 BranchFlattener (const Variation &v)

 BranchFlattener (const Variation &v)


Protected Attributes

const RecEvent * recEvent

vector< RecJet > * recJets

unique_ptr< MultiJets< RecJet > > hexaJets

list< unique_ptr< DT::SelfAwareBranch< const RecEvent & > > > eventBranches

list< unique_ptr< DT::SelfAwareBranch< const vector< RecJet > & > > > jetCollectionBranches

list< unique_ptr< DT::SelfAwareBranch< const RecJet & > > > jetBranches

list< unique_ptr< DT::SelfAwareBranch< const MultiJets< RecJet > & > > > tpsScalarBranches

list< unique_ptr< DT::SelfAwareBranch< const MultiJets< RecJet > &, int > > > tpsVectorBranches

- Protected Attributes inherited from BranchFlattener
Variation v


Constructor & Destructor Documentation

◆ TPSBranchFlattener()

TPSBranchFlattener ( DT::Flow &  flow,
const Variation &  v
)
inline
75  : BranchFlattener(v)
76  {
77  // Get input branches
78  recEvent = flow.GetBranchReadOnly<RecEvent>("recEvent");
79  recJets = flow.GetBranchReadOnly<vector<RecJet>>("recJets");
80
81  // Add event-level branches
82  AddEventBranch<float, RecEvent>(flow, "EventWeight", [] (const RecEvent& evt) { return evt.weights.front(); });
83
84  // Add jet collection branches
85  AddEventBranch<int, vector<RecJet>>(flow, "nJets", [] (const vector<RecJet>& jets) { return static_cast<int>(jets.size()); });
86
87  // Add individual jet branches
88  AddJetBranch<float>(flow, "jet_pt", [this] (const RecJet& jet) { return jet.CorrP4().Pt(); });
89  AddJetBranch<float>(flow, "jet_eta", [this] (const RecJet& jet) { return jet.CorrP4().Eta(); });
90  AddJetBranch<float>(flow, "jet_phi", [this] (const RecJet& jet) { return jet.CorrP4().Phi(); });
91  AddJetBranch<float>(flow, "jet_mass", [this] (const RecJet& jet) { return jet.CorrP4().M(); });
92
93  // Add TPS scalar branches
94  AddTPSScalarBranch<float>(flow, "S_pt", [] (const MultiJets<RecJet>& hexaJets) { return hexaJets.S_pt; });
95  AddTPSScalarBranch<float>(flow, "S_pt_min", [] (const MultiJets<RecJet>& hexaJets) { return hexaJets.S_pt_min; });
96  AddTPSScalarBranch<float>(flow, "S_phi", [] (const MultiJets<RecJet>& hexaJets) { return hexaJets.S_phi; });
97  AddTPSScalarBranch<float>(flow, "S_phi_min", [] (const MultiJets<RecJet>& hexaJets) { return hexaJets.S_phi_min; });
98
99  // Add TPS vector branches for pairs
100  for (int i = 0; i < N_PAIRS; i++) {
101  const int pair_idx = i;
102  AddTPSVectorBranch<float>(flow, Form("pt_pair_asymm_vec_%d", i), [pair_idx] (const MultiJets<RecJet>& hexaJets, int idx) {return hexaJets.pt_pair_asymm_vec[pair_idx][idx];});
103  AddTPSVectorBranch<float>(flow, Form("pt_pair_asymm_abs_%d", i), [pair_idx] (const MultiJets<RecJet>& hexaJets, int idx) {return hexaJets.pt_pair_asymm_abs[pair_idx][idx];});
104  AddTPSVectorBranch<float>(flow, Form("Delta_eta_pair_%d", i), [pair_idx] (const MultiJets<RecJet>& hexaJets, int idx) {return hexaJets.Delta_eta_pair[pair_idx][idx];});
105  AddTPSVectorBranch<float>(flow, Form("Delta_phi_pair_%d", i), [pair_idx] (const MultiJets<RecJet>& hexaJets, int idx) {return hexaJets.Delta_phi_pair[pair_idx][idx];});
106  AddTPSVectorBranch<float>(flow, Form("m_inv_%d", i),[pair_idx] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.m_inv[pair_idx][idx]; });
107  }
108
109  // Add TPS vector branches for permutations
110  AddTPSVectorBranch<float>(flow, "S_pt_perm", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_pt_perm[idx]; });
111  AddTPSVectorBranch<float>(flow, "S_pt_4", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_pt_4[idx]; });
112  AddTPSVectorBranch<float>(flow, "S_pt_4_min", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_pt_4_min[idx]; });
113  AddTPSVectorBranch<float>(flow, "S_phi_perm", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_phi_perm[idx]; });
114  AddTPSVectorBranch<float>(flow, "S_phi_4", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_phi_4[idx]; });
115  AddTPSVectorBranch<float>(flow, "S_phi_4_min", [] (const MultiJets<RecJet>& hexaJets, int idx) { return hexaJets.S_phi_4_min[idx]; });
116
117  for (int i = 0; i < N_S_4_PERM; i++) {
118  const int perm_idx = i;
119  AddTPSVectorBranch<float>(
120  flow, Form("S_pt_4_perm_%d", i), [perm_idx] (const MultiJets<RecJet>& hexaJets, int idx) {
121  return hexaJets.S_pt_4_perm[perm_idx][idx];
122  });
123  AddTPSVectorBranch<float>(
124  flow, Form("S_phi_4_perm_%d", i), [perm_idx] (const MultiJets<RecJet>& hexaJets, int idx) {
125  return hexaJets.S_phi_4_perm[perm_idx][idx];
126  });
127  }
128  }

Member Function Documentation

◆ AddEventBranch()

void AddEventBranch ( DT::Flow &  flow,
const string &  name,
const function< Ret(const Input &)> &  f
)
inlineprotected
47  {
48  if constexpr (is_same_v<Input, RecEvent>) {
49  eventBranches.emplace_back(make_unique<DT::SelfAwarePlainBranch<Ret, const Input&>>(flow, name, f));
50  } else if constexpr (is_same_v<Input, vector<RecJet>>) {
51  jetCollectionBranches.emplace_back(make_unique<DT::SelfAwarePlainBranch<Ret, const Input&>>(flow, name, f));
52  }
53  }

◆ AddJetBranch()

void AddJetBranch ( DT::Flow &  flow,
const string &  name,
const function< Ret(const RecJet &)> &  f
)
inlineprotected
57  {
58  jetBranches.emplace_back(make_unique<DT::SelfAwareVectorBranch<Ret, const RecJet&>>(flow, name, f));
59  }

◆ AddTPSScalarBranch()

void AddTPSScalarBranch ( DT::Flow &  flow,
const string &  name,
const function< Ret(const MultiJets< RecJet > &)> &  f
)
inlineprotected
63  {
64  tpsScalarBranches.emplace_back(make_unique<DT::SelfAwarePlainBranch<Ret, const MultiJets<RecJet>&>>(flow, name, f));
65  }

◆ AddTPSVectorBranch()

void AddTPSVectorBranch ( DT::Flow &  flow,
const string &  name,
const function< Ret(const MultiJets< RecJet > &, int)> &  f
)
inlineprotected
69  {
70  tpsVectorBranches.emplace_back(make_unique<DT::SelfAwareVectorBranch<Ret, const MultiJets<RecJet>&, int>>(flow, name, f));
71  }

◆ Clear()

void Clear ( )
inlineoverridevirtual

Implements BranchFlattener.

144  {
145  for (const auto& branch : eventBranches) branch->Clear();
146  for (const auto& branch : jetCollectionBranches) branch->Clear();
147  for (const auto& branch : jetBranches) branch->Clear();
148  for (const auto& branch : tpsScalarBranches) branch->Clear();
149  for (const auto& branch : tpsVectorBranches) branch->Clear();
150  hexaJets.reset();
151  }

◆ Fill()

void Fill ( )
inlineoverridevirtual

Implements BranchFlattener.

131  {
132  for (const auto& branch : eventBranches) branch->Fill(*recEvent);
133  for (const auto& branch : jetCollectionBranches) branch->Fill(*recJets);
134  for (const auto& jet : *recJets)
135  for (const auto& branch : jetBranches) branch->Fill(jet);
136
137  hexaJets = make_unique<MultiJets<RecJet>>(*recJets, 25);
138  for (const auto& branch : tpsScalarBranches) branch->Fill(*hexaJets);
139  for (size_t i = 0; i < N_S_4_PERM; i++)
140  for (const auto& branch : tpsVectorBranches) branch->Fill(*hexaJets, i);
141  }

Member Data Documentation

◆ eventBranches

list<unique_ptr<DT::SelfAwareBranch<const RecEvent&> > > eventBranches
protected

◆ hexaJets

unique_ptr<MultiJets<RecJet> > hexaJets
protected

◆ jetBranches

list<unique_ptr<DT::SelfAwareBranch<const RecJet&> > > jetBranches
protected

◆ jetCollectionBranches

list<unique_ptr<DT::SelfAwareBranch<const vector<RecJet>&> > > jetCollectionBranches
protected

◆ recEvent

const RecEvent* recEvent
protected

◆ recJets

vector<RecJet>* recJets
protected

◆ tpsScalarBranches

list<unique_ptr<DT::SelfAwareBranch<const MultiJets<RecJet>&> > > tpsScalarBranches
protected

◆ tpsVectorBranches

list<unique_ptr<DT::SelfAwareBranch<const MultiJets<RecJet>&, int> > > tpsVectorBranches
protected
