AnonymousScalableObject

Description

Abstract class for any object that carries its own 4-momentum.

The 4-vector is expected to contain the raw momentum. A std::vector is used to carry the scale factor and all its variations.

#include <GenericObject.h>

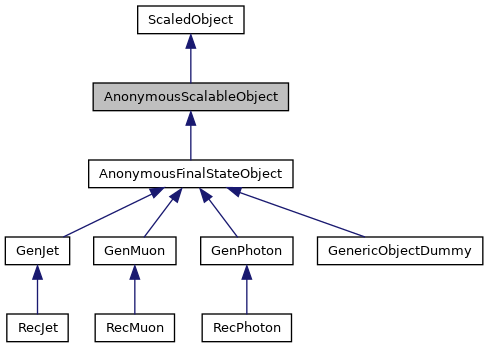

Inheritance diagram for AnonymousScalableObject:

Collaboration diagram for AnonymousScalableObject:

Public Member Functions
FourVector	CorrP4 (size_t i=0) const
float	CorrPt (size_t i=0) const
float	Rapidity (const Variation &=nominal) const final
float	AbsRap (const Variation &=nominal) const final
FourVector	CorrP4 (const Variation &v) const final
float	CorrPt (const Variation &v) const final
virtual void	Clear ()
bool	operator== (const AnonymousScalableObject &that) const
bool	operator< (const AnonymousScalableObject &that) const
bool	operator> (const AnonymousScalableObject &that) const
FourVector	CorrP4 (size_t i=0) const
float	CorrPt (size_t i=0) const
float	Rapidity (const Variation &=nominal) const final
float	AbsRap (const Variation &=nominal) const final
FourVector	CorrP4 (const Variation &v) const final
float	CorrPt (const Variation &v) const final
virtual void	Clear ()
bool	operator== (const AnonymousScalableObject &that) const
bool	operator< (const AnonymousScalableObject &that) const
bool	operator> (const AnonymousScalableObject &that) const

Public Attributes
FourVector	p4 = FourVector(std::nan("pt"), std::nan("eta"), std::nan("phi"), std::nan("mass"))
std::vector< float >	scales = {1.}

Protected Member Functions
virtual std::string_view	ScaleGroup () const =0
	AnonymousScalableObject ()=default
virtual	~AnonymousScalableObject ()=default
virtual std::string_view	ScaleGroup () const =0
	AnonymousScalableObject ()=default
virtual	~AnonymousScalableObject ()=default
Protected Member Functions inherited from ScaledObject
virtual	~ScaledObject ()=default
virtual	~ScaledObject ()=default

Constructor & Destructor Documentation

AnonymousScalableObject() [1/2]

AnonymousScalableObject ( )

protecteddefault

~AnonymousScalableObject() [1/2]

virtual ~AnonymousScalableObject ( )

protectedvirtualdefault

AnonymousScalableObject() [2/2]

AnonymousScalableObject ( )

protecteddefault

~AnonymousScalableObject() [2/2]

virtual ~AnonymousScalableObject ( )

protectedvirtualdefault

Member Function Documentation

AbsRap() [1/2]

float AbsRap ( const Variation &  = nominal ) const

inlinefinalvirtual

absolute rapidity

Implements ScaledObject.

AbsRap() [2/2]

float AbsRap ( const Variation &  = nominal ) const

inlinefinalvirtual

absolute rapidity

Implements ScaledObject.

Clear() [1/2]

virtual void Clear ( )

inlinevirtual

Reimplemented in AnonymousFinalStateObject, and AnonymousFinalStateObject.

    {
        p4.SetCoordinates(std::nan("pt"), std::nan("eta"), std::nan("phi"), std::nan("mass"));
        scales = {1.};
    }

Clear() [2/2]

virtual void Clear ( )

inlinevirtual

Reimplemented in AnonymousFinalStateObject, and AnonymousFinalStateObject.

    {
        p4.SetCoordinates(std::nan("pt"), std::nan("eta"), std::nan("phi"), std::nan("mass"));
        scales = {1.};
    }

CorrP4() [1/4]

FourVector CorrP4 ( const Variation &  v ) const

inlinefinalvirtual

< corrected 4-vector

Implements ScaledObject.

    {
        size_t i = v.Group() == ScaleGroup() ? v.Index() : 0;
        return AnonymousScalableObject::CorrP4(i);
    }

CorrP4() [2/4]

FourVector CorrP4 ( const Variation &  v ) const

inlinefinalvirtual

< corrected 4-vector

Implements ScaledObject.

    {
        size_t i = v.Group() == ScaleGroup() ? v.Index() : 0;
        return AnonymousScalableObject::CorrP4(i);
    }

CorrP4() [3/4]

FourVector CorrP4 ( size_t  i = 0 ) const

inline

corrected 4-vector

CorrP4() [4/4]

FourVector CorrP4 ( size_t  i = 0 ) const

inline

corrected 4-vector

CorrPt() [1/4]

float CorrPt ( const Variation &  v ) const

inlinefinalvirtual

< corrected transverse momentum

Implements ScaledObject.

    {
        size_t i = v.Group() == ScaleGroup() ? v.Index() : 0;
        return AnonymousScalableObject::CorrPt(i);
    }

CorrPt() [2/4]

float CorrPt ( const Variation &  v ) const

inlinefinalvirtual

< corrected transverse momentum

Implements ScaledObject.

    {
        size_t i = v.Group() == ScaleGroup() ? v.Index() : 0;
        return AnonymousScalableObject::CorrPt(i);
    }

CorrPt() [3/4]

float CorrPt ( size_t  i = 0 ) const

inline

corrected transverse momentum

CorrPt() [4/4]

float CorrPt ( size_t  i = 0 ) const

inline

corrected transverse momentum

operator<() [1/2]

bool operator< ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->CorrPt() < that.CorrPt();
    }

operator<() [2/2]

bool operator< ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->CorrPt() < that.CorrPt();
    }

operator==() [1/2]

bool operator== ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->p4 == that.p4 && this->scales == that.scales;
    }

operator==() [2/2]

bool operator== ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->p4 == that.p4 && this->scales == that.scales;
    }

operator>() [1/2]

bool operator> ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->CorrPt() > that.CorrPt();
    }

operator>() [2/2]

bool operator> ( const AnonymousScalableObject &  that ) const

inline

    {
        return this->CorrPt() > that.CorrPt();
    }

Rapidity() [1/2]

float Rapidity ( const Variation &  = nominal ) const

inlinefinalvirtual

Implements ScaledObject.

{ return       p4.Rapidity() ; }

Rapidity() [2/2]

float Rapidity ( const Variation &  = nominal ) const

inlinefinalvirtual

Implements ScaledObject.

{ return       p4.Rapidity() ; }

ScaleGroup() [1/2]

virtual std::string_view ScaleGroup ( ) const

protectedpure virtual

Implemented in RecPhoton, RecPhoton, RecJet, RecJet, RecMuon, RecMuon, GenPhoton, GenericObjectDummy, GenPhoton, GenJet, GenMuon, GenJet, and GenMuon.

ScaleGroup() [2/2]

virtual std::string_view ScaleGroup ( ) const

protectedpure virtual

Implemented in RecPhoton, RecPhoton, RecJet, RecJet, RecMuon, RecMuon, GenPhoton, GenericObjectDummy, GenPhoton, GenJet, GenMuon, GenJet, and GenMuon.

Member Data Documentation

p4

FourVector p4 = FourVector(std::nan("pt"), std::nan("eta"), std::nan("phi"), std::nan("mass"))

raw four-momentum directly after reconstruction

scales

std::vector< float > scales = {1.}

energy scale corrections and variations

---

The documentation for this class was generated from the following file:

• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Darwin/interface/GenericObject.h
