EventObjectBranchFlattener< T >

Description

template<typename T>
class Darwin::Physics::EventObjectBranchFlattener< T >

Wrapper for flat branches for gen- or rec-level event-type objects.

Todo:

Project more variables.

Todo:

Project more variables.

#include <Flattener.h>

Inheritance diagram for EventObjectBranchFlattener< T >:

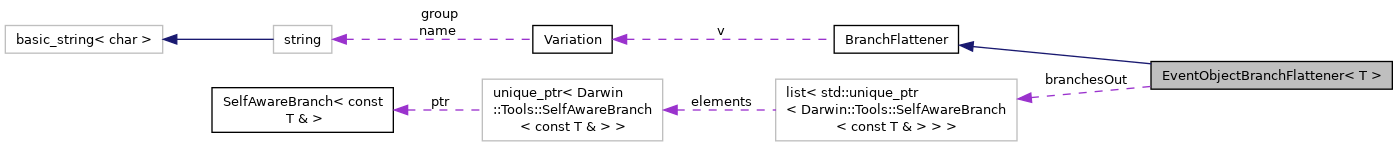

Collaboration diagram for EventObjectBranchFlattener< T >:

Public Member Functions
template<typename Ret >
void	Add (Tools::Flow &flow, const std::string &name, const std::function< Ret(const T &)> &f)
	EventObjectBranchFlattener (Tools::Flow &flow, const Variation &v, const std::string &nameIn, const std::string &nameOut)
void	Fill () override
void	Clear () override
virtual	~EventObjectBranchFlattener ()=default
template<typename Ret >
void	Add (Tools::Flow &flow, const std::string &name, const std::function< Ret(const T &)> &f)
	EventObjectBranchFlattener (Tools::Flow &flow, const Variation &v, const std::string &nameIn, const std::string &nameOut)
void	Fill () override
void	Clear () override
virtual	~EventObjectBranchFlattener ()=default
Public Member Functions inherited from BranchFlattener
virtual	~BranchFlattener ()=default
virtual	~BranchFlattener ()=default

Private Attributes
T *	branchIn
std::list< std::unique_ptr< DT::SelfAwareBranch< const T & > > >	branchesOut

Additional Inherited Members
Protected Member Functions inherited from BranchFlattener
	BranchFlattener (const Variation &v)
	BranchFlattener (const Variation &v)
Protected Attributes inherited from BranchFlattener
Variation	v

Constructor & Destructor Documentation

EventObjectBranchFlattener() [1/2]

EventObjectBranchFlattener ( Tools::Flow &  flow, const Variation &  v, const std::string &  nameIn, const std::string &  nameOut  )

inline

Generic class to project vectors of a given scaled object.

Parameters

nameIn	e.g. genEvent, recEvent
nameOut	e.g. Generator, ... (NANOAOD)

        : BranchFlattener(v), branchIn(nullptr)
    {
        using namespace std;

        branchIn = flow.GetBranchReadOnly<T>(nameIn, DT::facultative);
        if (!branchIn) return;

        Add<double>(flow, nameOut, [this](const T& obj) { return obj.Weight(this->v); });
    }

~EventObjectBranchFlattener() [1/2]

virtual ~EventObjectBranchFlattener ( )

virtualdefault

EventObjectBranchFlattener() [2/2]

EventObjectBranchFlattener ( Tools::Flow &  flow, const Variation &  v, const std::string &  nameIn, const std::string &  nameOut  )

inline

Generic class to project vectors of a given scaled object.

Parameters

nameIn	e.g. genEvent, recEvent
nameOut	e.g. Generator, ... (NANOAOD)

        : BranchFlattener(v), branchIn(nullptr)
    {
        using namespace std;

        branchIn = flow.GetBranchReadOnly<T>(nameIn, DT::facultative);
        if (!branchIn) return;

        Add<double>(flow, nameOut, [this](const T& obj) { return obj.Weight(this->v); });
    }

~EventObjectBranchFlattener() [2/2]

virtual ~EventObjectBranchFlattener ( )

virtualdefault

Member Function Documentation

Add() [1/2]

void Add ( Tools::Flow &  flow, const std::string &  name, const std::function< Ret(const T &)> &  f  )

inline

Helper to add a new self-aware input branch.

    {
        branchesOut.emplace_back(std::make_unique<DT::SelfAwarePlainBranch<Ret, const T&>>(flow, name, f));
    }

Add() [2/2]

void Add ( Tools::Flow &  flow, const std::string &  name, const std::function< Ret(const T &)> &  f  )

inline

Helper to add a new self-aware input branch.

    {
        branchesOut.emplace_back(std::make_unique<DT::SelfAwarePlainBranch<Ret, const T&>>(flow, name, f));
    }

Clear() [1/2]

void Clear ( )

inlineoverridevirtual

Clear output branches.

Implements BranchFlattener.

    {
        for (const auto& br: branchesOut)
            br->Clear();
    }

Clear() [2/2]

void Clear ( )

inlineoverridevirtual

Clear output branches.

Implements BranchFlattener.

    {
        for (const auto& br: branchesOut)
            br->Clear();
    }

Fill() [1/2]

void Fill ( )

inlineoverridevirtual

Fill output branches.

Implements BranchFlattener.

    {
        for (const auto& br: branchesOut)
            br->Fill(*branchIn);
    }

Fill() [2/2]

void Fill ( )

inlineoverridevirtual

Fill output branches.

Implements BranchFlattener.

    {
        for (const auto& br: branchesOut)
            br->Fill(*branchIn);
    }

Member Data Documentation

branchesOut

std::list< std::unique_ptr< DT::SelfAwareBranch< const T & > > > branchesOut

private

container for output branches

branchIn

T * branchIn

private

input structured branch (e.g. in Darwin format)

---

The documentation for this class was generated from the following file:

• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Darwin/interface/Flattener.h
