PhysicsObjectFlattener< GenObject, RecObject >

Description

template<typename GenObject, typename RecObject>
class Darwin::Physics::PhysicsObjectFlattener< GenObject, RecObject >

Plugin template to produce flat branches for physics objects.

Assuming myFlattener, an object instantiated from a library that inherits from this class and is loaded from a plugin:

myFlattener->Load(flow, metainfo, steering, config);
for (/* events *‍/) {
    myFlattener->ExecuteAtBegin(); // clear
    myFlattener->ExecuteAtEnd(); // prepare to fill
    tOut->Fill();
}

#include <Flattener.h>

Inheritance diagram for PhysicsObjectFlattener< GenObject, RecObject >:

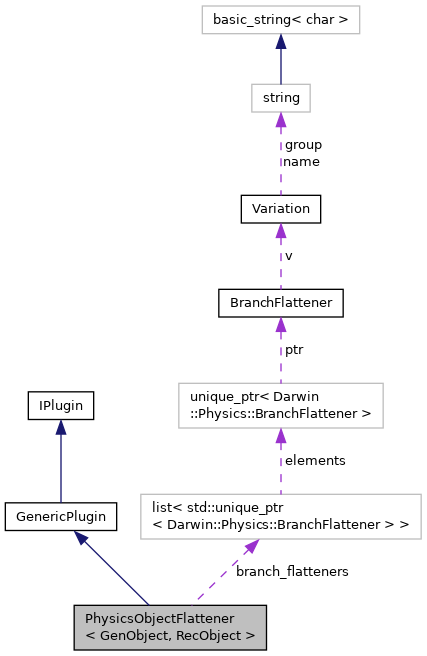

Collaboration diagram for PhysicsObjectFlattener< GenObject, RecObject >:

Public Member Functions
	PhysicsObjectFlattener ()=default
virtual	~PhysicsObjectFlattener ()=default
virtual void	ExecuteAtBegin (const std::set< Variation > &={nominal}) override
virtual void	ExecuteAtEnd (const std::set< Variation > &={nominal}) override
	PhysicsObjectFlattener ()=default
virtual	~PhysicsObjectFlattener ()=default
virtual void	ExecuteAtBegin (const std::set< Variation > &={nominal}) override
virtual void	ExecuteAtEnd (const std::set< Variation > &={nominal}) override
Public Member Functions inherited from GenericPlugin
	GenericPlugin ()=default
virtual	~GenericPlugin ()=default
virtual void	Write (TDirectory *)
	GenericPlugin ()=default
virtual	~GenericPlugin ()=default
virtual void	Write (TDirectory *)
Public Member Functions inherited from IPlugin
	IPlugin ()=default
virtual	~IPlugin ()
void	SetPath (const std::filesystem::path &file) noexcept
virtual void	Load (Darwin::Tools::Flow &, Darwin::Tools::MetaInfo &, int=0, const boost::property_tree::ptree &={})
	IPlugin ()=default
virtual	~IPlugin ()
void	SetPath (const std::filesystem::path &file) noexcept
virtual void	Load (Darwin::Tools::Flow &, Darwin::Tools::MetaInfo &, int=0, const boost::property_tree::ptree &={})

Protected Member Functions
virtual int	GetParamsVeto () noexcept override
virtual int	GetParamsVeto () noexcept override

Protected Attributes
std::list< std::unique_ptr< BranchFlattener > >	branch_flatteners
Protected Attributes inherited from IPlugin
int	steering = none
bool	isMC = false

Constructor & Destructor Documentation

PhysicsObjectFlattener() [1/2]

PhysicsObjectFlattener ( )

default

~PhysicsObjectFlattener() [1/2]

virtual ~PhysicsObjectFlattener ( )

virtualdefault

PhysicsObjectFlattener() [2/2]

PhysicsObjectFlattener ( )

default

~PhysicsObjectFlattener() [2/2]

virtual ~PhysicsObjectFlattener ( )

virtualdefault

Member Function Documentation

ExecuteAtBegin() [1/2]

virtual void ExecuteAtBegin ( const std::set< Variation > &  = {nominal} )

inlineoverridevirtual

Clear output branches.

The variations given in arguments should not be used.

Reimplemented from GenericPlugin.

                                                            {nominal}) override
    {
        for (const auto& br: branch_flatteners)
            br->Clear();
    }

ExecuteAtBegin() [2/2]

virtual void ExecuteAtBegin ( const std::set< Variation > &  = {nominal} )

inlineoverridevirtual

Clear output branches.

The variations given in arguments should not be used.

Reimplemented from GenericPlugin.

                                                            {nominal}) override
    {
        for (const auto& br: branch_flatteners)
            br->Clear();
    }

ExecuteAtEnd() [1/2]

virtual void ExecuteAtEnd ( const std::set< Variation > &  = {nominal} )

inlineoverridevirtual

Fill output branches.

The variations given in arguments should not be used.

Reimplemented from GenericPlugin.

                                                          {nominal}) override
    {
        for (const auto& br: branch_flatteners)
            br->Fill();
    }

ExecuteAtEnd() [2/2]

virtual void ExecuteAtEnd ( const std::set< Variation > &  = {nominal} )

inlineoverridevirtual

Fill output branches.

The variations given in arguments should not be used.

Reimplemented from GenericPlugin.

                                                          {nominal}) override
    {
        for (const auto& br: branch_flatteners)
            br->Fill();
    }

GetParamsVeto() [1/2]

virtual int GetParamsVeto ( )

inlineoverrideprotectedvirtualnoexcept

Plugin's forbidden modes.

See also

Darwin::Tools::Mode

Reimplemented from IPlugin.

{ return DT::syst; }

GetParamsVeto() [2/2]

virtual int GetParamsVeto ( )

inlineoverrideprotectedvirtualnoexcept

Plugin's forbidden modes.

See also

Darwin::Tools::Mode

Reimplemented from IPlugin.

{ return DT::syst; }

Member Data Documentation

branch_flatteners

std::list< std::unique_ptr< BranchFlattener > > branch_flatteners

protected

---

The documentation for this class was generated from the following file:

• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Darwin/interface/Flattener.h
