ScaledObjectBranchFlattener< T >

Description

template<typename T>
class Darwin::Physics::ScaledObjectBranchFlattener< T >

Wrapper for flat branches for gen- or rec-level final-state objects.

Todo:

Project more variables.

Todo:

Project more variables.

#include <Flattener.h>

Inheritance diagram for ScaledObjectBranchFlattener< T >:

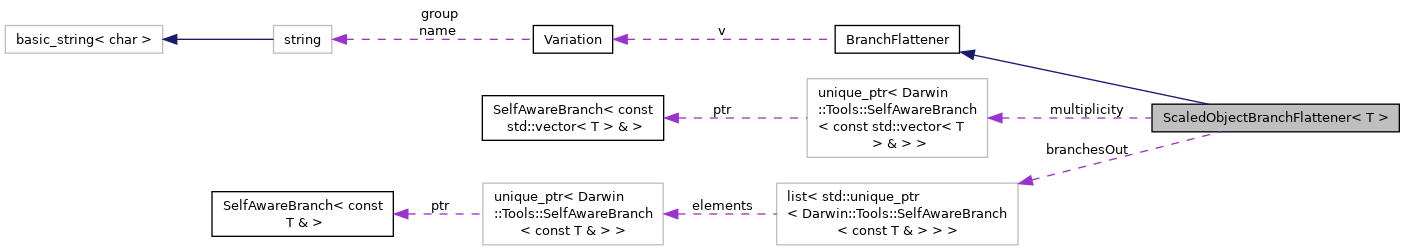

Collaboration diagram for ScaledObjectBranchFlattener< T >:

Public Member Functions
template<typename Ret >
void	Add (Tools::Flow &flow, const std::string &name, const std::function< Ret(const T &)> &f)
	ScaledObjectBranchFlattener (Tools::Flow &flow, const Variation &v, const std::string &nameIn, const std::string &nameOut)
void	Fill () override
void	Clear () override
virtual	~ScaledObjectBranchFlattener ()=default
template<typename Ret >
void	Add (Tools::Flow &flow, const std::string &name, const std::function< Ret(const T &)> &f)
	ScaledObjectBranchFlattener (Tools::Flow &flow, const Variation &v, const std::string &nameIn, const std::string &nameOut)
void	Fill () override
void	Clear () override
virtual	~ScaledObjectBranchFlattener ()=default
Public Member Functions inherited from BranchFlattener
virtual	~BranchFlattener ()=default
virtual	~BranchFlattener ()=default

Private Attributes
std::vector< T > *	branchIn
std::list< std::unique_ptr< DT::SelfAwareBranch< const T & > > >	branchesOut
std::unique_ptr< DT::SelfAwareBranch< const std::vector< T > & > >	multiplicity

Additional Inherited Members
Protected Member Functions inherited from BranchFlattener
	BranchFlattener (const Variation &v)
	BranchFlattener (const Variation &v)
Protected Attributes inherited from BranchFlattener
Variation	v

Constructor & Destructor Documentation

ScaledObjectBranchFlattener() [1/2]

ScaledObjectBranchFlattener ( Tools::Flow &  flow, const Variation &  v, const std::string &  nameIn, const std::string &  nameOut  )

inline

Generic class to project vectors of a given scaled object.

Parameters

nameIn	e.g. genJet, recJet (Darwin)
nameOut	e.g. GenJet, Jet (NANOAOD)

        : BranchFlattener(v), branchIn(nullptr)
    {
        using namespace std;

        branchIn = flow.GetBranchReadOnly<vector<T>>(nameIn, DT::facultative);
        if (!branchIn) return;

        Add<float>(flow, nameOut + "_pt"  , [this](const T& el) { return el.CorrP4(this->v).pt  (); });
        Add<float>(flow, nameOut + "_eta" , [this](const T& el) { return el.CorrP4(this->v).eta (); });
        Add<float>(flow, nameOut + "_phi" , [this](const T& el) { return el.CorrP4(this->v).phi (); });
        Add<float>(flow, nameOut + "_mass", [this](const T& el) { return el.CorrP4(this->v).mass(); });

        auto getMult = [](const vector<T>& branchIn) { return branchIn.size(); };
        multiplicity = make_unique<DT::SelfAwarePlainBranch<int, const vector<T>&>>(flow, "n" + nameOut, getMult);
    }

~ScaledObjectBranchFlattener() [1/2]

virtual ~ScaledObjectBranchFlattener ( )

virtualdefault

ScaledObjectBranchFlattener() [2/2]

ScaledObjectBranchFlattener ( Tools::Flow &  flow, const Variation &  v, const std::string &  nameIn, const std::string &  nameOut  )

inline

Generic class to project vectors of a given scaled object.

Parameters

nameIn	e.g. genJet, recJet (Darwin)
nameOut	e.g. GenJet, Jet (NANOAOD)

        : BranchFlattener(v), branchIn(nullptr)
    {
        using namespace std;

        branchIn = flow.GetBranchReadOnly<vector<T>>(nameIn, DT::facultative);
        if (!branchIn) return;

        Add<float>(flow, nameOut + "_pt"  , [this](const T& el) { return el.CorrP4(this->v).pt  (); });
        Add<float>(flow, nameOut + "_eta" , [this](const T& el) { return el.CorrP4(this->v).eta (); });
        Add<float>(flow, nameOut + "_phi" , [this](const T& el) { return el.CorrP4(this->v).phi (); });
        Add<float>(flow, nameOut + "_mass", [this](const T& el) { return el.CorrP4(this->v).mass(); });

        auto getMult = [](const vector<T>& branchIn) { return branchIn.size(); };
        multiplicity = make_unique<DT::SelfAwarePlainBranch<int, const vector<T>&>>(flow, "n" + nameOut, getMult);
    }

~ScaledObjectBranchFlattener() [2/2]

virtual ~ScaledObjectBranchFlattener ( )

virtualdefault

Member Function Documentation

Add() [1/2]

void Add ( Tools::Flow &  flow, const std::string &  name, const std::function< Ret(const T &)> &  f  )

inline

Helper to add a new self-aware input branch.

    {
        branchesOut.emplace_back(std::make_unique<DT::SelfAwareVectorBranch<Ret, const T&>>(flow, name, f));
    }

Add() [2/2]

void Add ( Tools::Flow &  flow, const std::string &  name, const std::function< Ret(const T &)> &  f  )

inline

Helper to add a new self-aware input branch.

    {
        branchesOut.emplace_back(std::make_unique<DT::SelfAwareVectorBranch<Ret, const T&>>(flow, name, f));
    }

Clear() [1/2]

void Clear ( )

inlineoverridevirtual

Clear output branches.

Implements BranchFlattener.

    {
        if (!branchIn) return;

        for (const auto& br: branchesOut)
            br->Clear();

        multiplicity->Clear();
    }

Clear() [2/2]

void Clear ( )

inlineoverridevirtual

Clear output branches.

Implements BranchFlattener.

    {
        if (!branchIn) return;

        for (const auto& br: branchesOut)
            br->Clear();

        multiplicity->Clear();
    }

Fill() [1/2]

void Fill ( )

inlineoverridevirtual

Fill output branches.

Implements BranchFlattener.

    {
        if (!branchIn) return;

        for (const auto& br: branchesOut)
            for (const auto& el: *branchIn)
                br->Fill(el);

        multiplicity->Fill(*branchIn);
    }

Fill() [2/2]

void Fill ( )

inlineoverridevirtual

Fill output branches.

Implements BranchFlattener.

    {
        if (!branchIn) return;

        for (const auto& br: branchesOut)
            for (const auto& el: *branchIn)
                br->Fill(el);

        multiplicity->Fill(*branchIn);
    }

Member Data Documentation

branchesOut

std::list< std::unique_ptr< DT::SelfAwareBranch< const T & > > > branchesOut

private

container for output branches

branchIn

std::vector< T > * branchIn

private

input structured branch (e.g. in Darwin format)

multiplicity

std::unique_ptr< DT::SelfAwareBranch< const std::vector< T > & > > multiplicity

private

---

The documentation for this class was generated from the following file:

• /builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Darwin/interface/Flattener.h
