#include <ZmmY.h>

Inheritance diagram for MmmFiller:

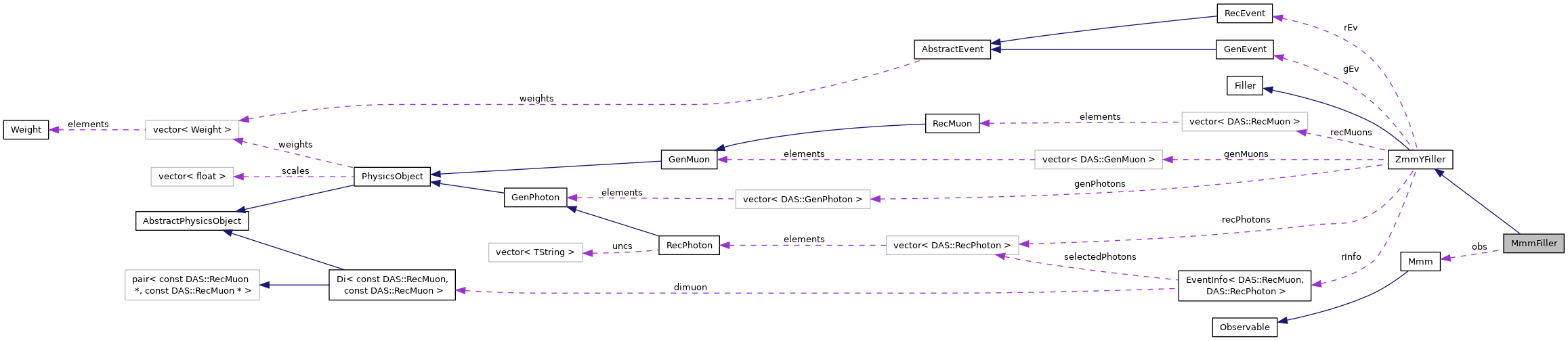

Collaboration diagram for MmmFiller:

Public Member Functions
	MmmFiller (const Mmm &, Darwin::Tools::Flow &)

double	computeObservableValue (const void *event, const Uncertainties::Variation &v, bool isGen) const override

const Observable *	getObs () const override

Public Member Functions inherited from ZmmYFiller
	ZmmYFiller (Darwin::Tools::Flow &flow, bool isMC)

template<typename MUON , typename PHOTON >
int	GetBinNumber (const TUnfoldBinning *binning, const EventInfo< MUON, PHOTON > &event, const Uncertainties::Variation &v) const

template<typename MUON , typename PHOTON >
int	GetBinNumber2D (const TUnfoldBinning *binning, const EventInfo< MUON, PHOTON > &event, const Uncertainties::Variation &v) const

virtual int	getObsDimension () const

std::list< int >	fillRec (DistVariation &v) override

void	match () override

void	fillMC (DistVariation &v) override

Public Member Functions inherited from Filler
virtual	~Filler ()=default

Public Attributes
const Mmm &	obs

Public Attributes inherited from ZmmYFiller
EventInfo< RecMuon, RecPhoton >	rInfo

std::vector< GenMuon > *	genMuons

std::vector< RecMuon > *	recMuons

std::vector< GenPhoton > *	genPhotons

std::vector< RecPhoton > *	recPhotons

GenEvent *	gEv

RecEvent *	rEv

Private Member Functions
template<typename MUON , typename PHOTON >
double	computeMmm (const EventInfo< MUON, PHOTON > &event, const Uncertainties::Variation &v) const

Additional Inherited Members
Protected Member Functions inherited from ZmmYFiller
virtual std::vector< double >	computeObservableValue2D (const void *event, const Uncertainties::Variation &v, bool isGen) const

Constructor & Destructor Documentation

◆ MmmFiller()

MmmFiller	(	const Mmm &	obs,
		Darwin::Tools::Flow &	flow
	)

141 : ZmmYFiller(flow, obs.isMC), obs(obs)

142 {}

Member Function Documentation

◆ computeMmm()

double computeMmm	(	const EventInfo< MUON, PHOTON > &	event,
		const Uncertainties::Variation &	v
	)		const

private

                                                                                                         {
     const auto mMuMu = event.mMuMu;
     return mMuMu;
 }

◆ computeObservableValue()

double computeObservableValue	(	const void *	event,
		const Uncertainties::Variation &	v,
		bool	isGen
	)		const

overridevirtual

Reimplemented from ZmmYFiller.

                                                                                                              {
     if (isGen) {
         return computeMmm(*static_cast<const EventInfo<GenMuon, GenPhoton>*>(event), v);
     } else {
         return computeMmm(*static_cast<const EventInfo<RecMuon, RecPhoton>*>(event), v);
     }
 }

◆ getObs()

const Observable* getObs ( ) const

inlineoverridevirtual

Implements ZmmYFiller.

135 { return &obs; }

Member Data Documentation

◆ obs

const Mmm& obs

The documentation for this struct was generated from the following files:

/builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Core/Unfolding/interface/ZmmY.h
/builds/cms-analysis/general/DasAnalysisSystem/Core/Installer/Core/Unfolding/src/ZmmY.cc
